1、裝上反力支架，并緊固螺釘。開動主機，使方頭銷孔與反力支架孔相對應，然后裝入扳手套筒，插上銷釘，并用橡膠圈固定。
1. Install the reaction support and tighten the screws. Start the main engine to make the square pin hole correspond to the counterforce bracket hole, then install the wrench socket, insert the pin and fix it with rubber ring.
2、將控制儀的扭矩旋鈕調到所需扭矩值，將主機正反開關撥到正轉位置，把扳手套筒套在螺紋連接件的六方上。
2. Adjust the torque knob of the controller to the required torque value, turn the forward and reverse switch of the main engine to the forward position, and put the wrench socket on the hexagon of the threaded connector.

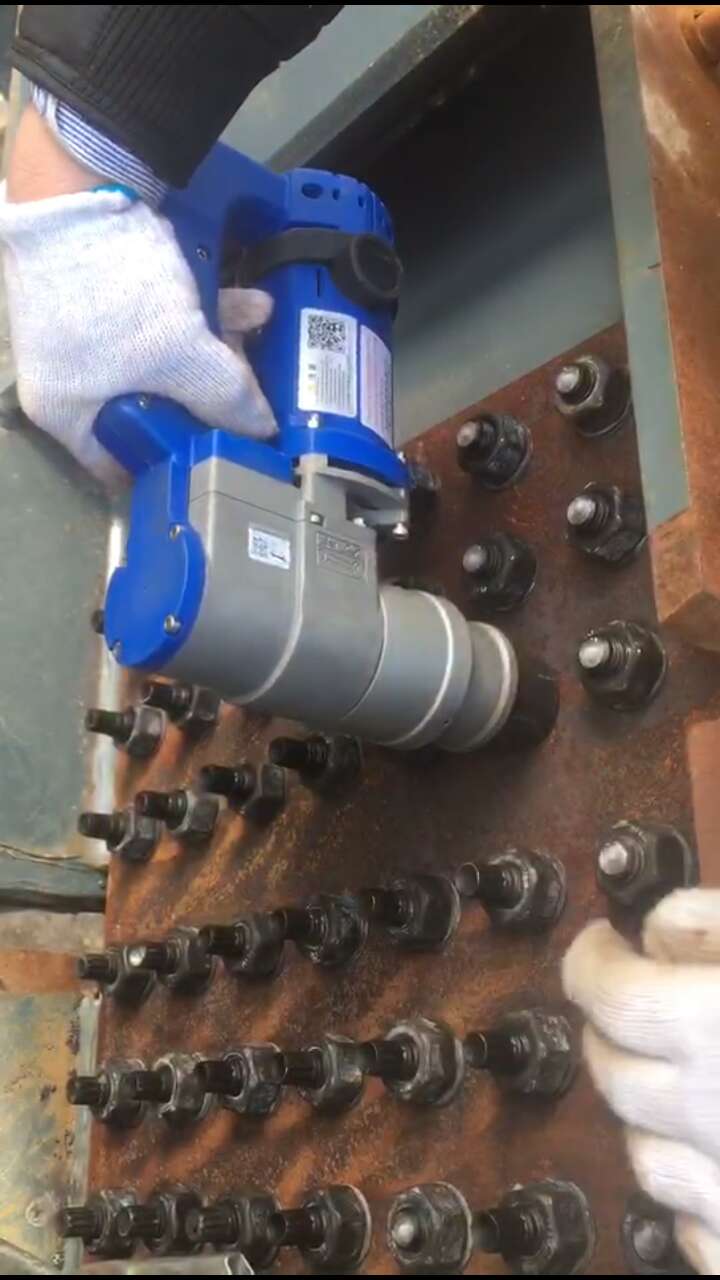

3、按下電源開關，扳手啟動。當反力支架力臂靠牢支架時（支點可以是鄰近的一只螺栓或其他可作支點的位置）螺栓開始擰緊。當螺栓扭矩達到預定扭矩時，扳手自動停止，緊固完成，松開電源開關，進行下一只螺栓的擰緊工作。
3. Press the power switch and the wrench starts. When the arm of the reaction support is firmly against the support (the fulcrum can be an adjacent bolt or other position that can be used as a fulcrum), the bolt begins to tighten. When the bolt torque reaches the predetermined torque, the wrench will stop automatically, the tightening is completed, the power switch will be loosened, and the next bolt will be tightened.
4、扳手自動停止后，靠反力支架的彈性形變力，使支架力臂自動脫離支點，取下扳手。如力臂不能脫離支點時，可撥動正反開關，點動電源開關扳手即可取下。

4. After the spanner stops automatically, the force arm of the support is automatically separated from the fulcrum by the elastic deformation force of the reaction support, and the spanner is removed. If the force arm can not be separated from the fulcrum, the positive and negative switches can be turned, and the power switch wrench can be turned to remove.
調節范圍：
Adjustment range:
1、用戶可在50-3500Nm的范圍內任意選擇相應規格的電動扭力扳手。
1. Users can choose the electric torque wrench of corresponding specifications in the range of 50-3500nm.
2、控制儀面板上有“扭矩調解旋鈕”?？逃?-10個刻度值。細調旋鈕的作用是在粗調兩檔之間進行調節補償，以提高扭矩控制精度。（見后頁）
2. There is "torque adjustment knob" on the control panel. There are 0-10 scale values. The function of fine adjustment knob is to adjust and compensate between two rough adjustment gears, so as to improve the torque control accuracy. (see next page)
3、調節方法：產品出廠時帶有扭矩測試數據卡片，供用戶標定時參考，用戶可根據所需扭矩選擇某一刻度值，按擰緊螺栓的操作方法，擰緊螺栓，用測力扳手或其它測力儀器測出螺栓的實際扭矩值，若扭矩相差較小，可用細調加以補償，若相差較大，可將粗調向上或向下調一檔，反復幾次即可獲得所需扭矩值。
3. Adjustment method: when the product leaves the factory, there is a torque test data card for the user's reference when calibrating. The user can select a scale value according to the required torque, tighten the bolt according to the operation method of tightening the bolt, and measure the actual torque value of the bolt with a force measuring wrench or other force measuring instruments. If the torque difference is small, fine adjustment can be used to compensate, if the difference is large, coarse adjustment can be upward Or downshift one gear and repeat several times to obtain the required torque value.
